gom

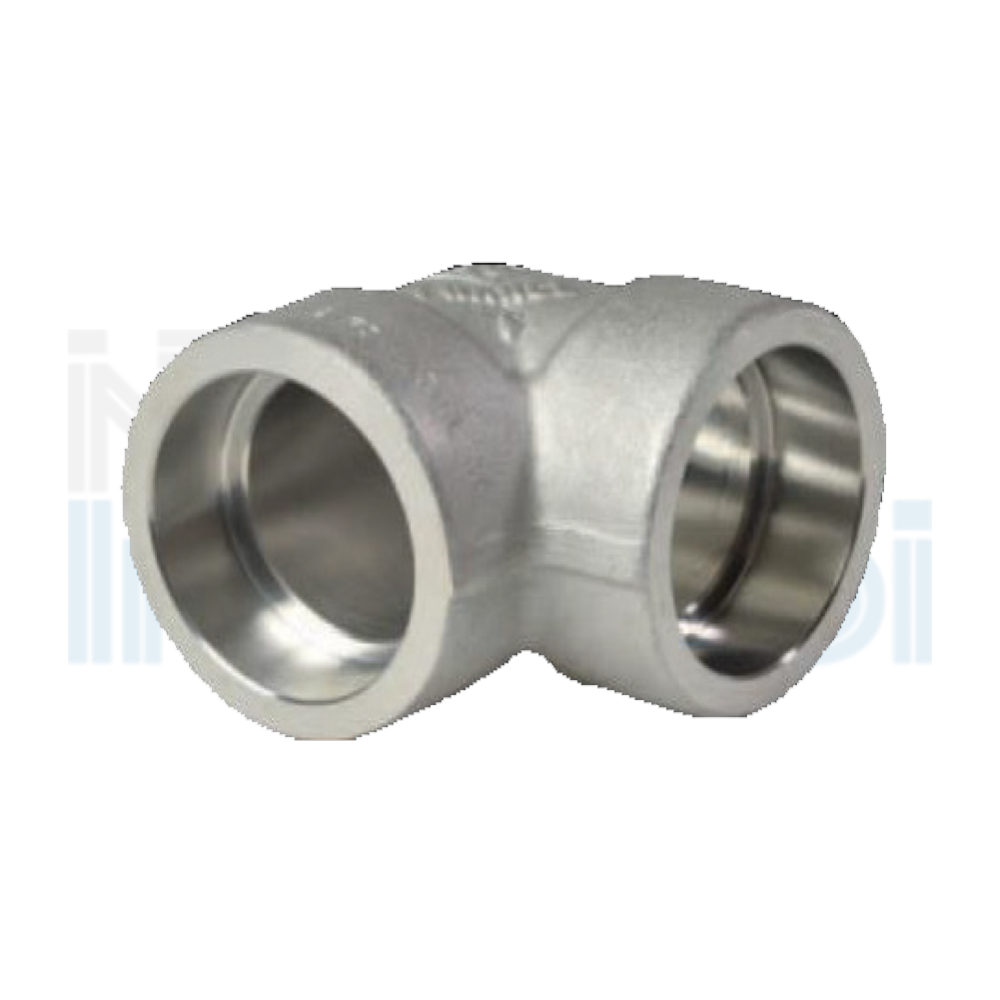

ELBOWS

ANSI B16.11
3000 - 6000 LBS

gom

ELBOWS

ANSI B16.11
3000 - 6000 LBS

Nominal pipe size

Center to bottom of socket A

90°

45°

Tolerances ±

3000

6000

3000

6000

mm

inches

mm

inches

mm

inches

mm

inches

mm

inches

1/4"

11.0

0.44

13.5

0.53

8.0

0.31

8.0

0.31

1.0

0.03

3/8"

13.5

0.53

15.5

0.62

7.5

0.31

11.5

0.44

1.5

0.06

1/2"

15.5

0.62

19.5

0.75

11.5

0.44

12.5

0.50

1.5

0.06

3/4"

19.5

0.75

22.5

0.88

12.5

0.50

14.5

0.56

1.5

0.06

1"

22.0

0.88

27.0

1.06

14.0

0.56

17.0

0.69

2.0

0.08

1 1/4"

27.0

1.06

32.0

1.25

17.0

0.69

21.0

0.81

2.0

0.08

1 1/2"

32.0

1.25

38.0

1.50

21.0

0.81

25.0

1.00

2.0

0.08

2"

38.0

1.50

41.0

1.62

25.0

1.00

29.0

1.12

2.0

0.08

2 1/2"

41.5

1.62



29.0

1.12



2.5

0.10

3"

57.5

2.25



31.5

1.25



2.5

0.10

4"

66.5

2.62



41.5

1.62



2.5

0.10



* For dimensions B - C - D - G - J refer to dimensions of s.w. fittings shown on the opposite page
