ANSI B16.11
3000 - 6000 LBS
ANSI B16.11
3000 - 6000 LBS
|
Diam. nominale Nominal pipe size |
Coste di montaggio / Laying lengths |
|||||||||||
|

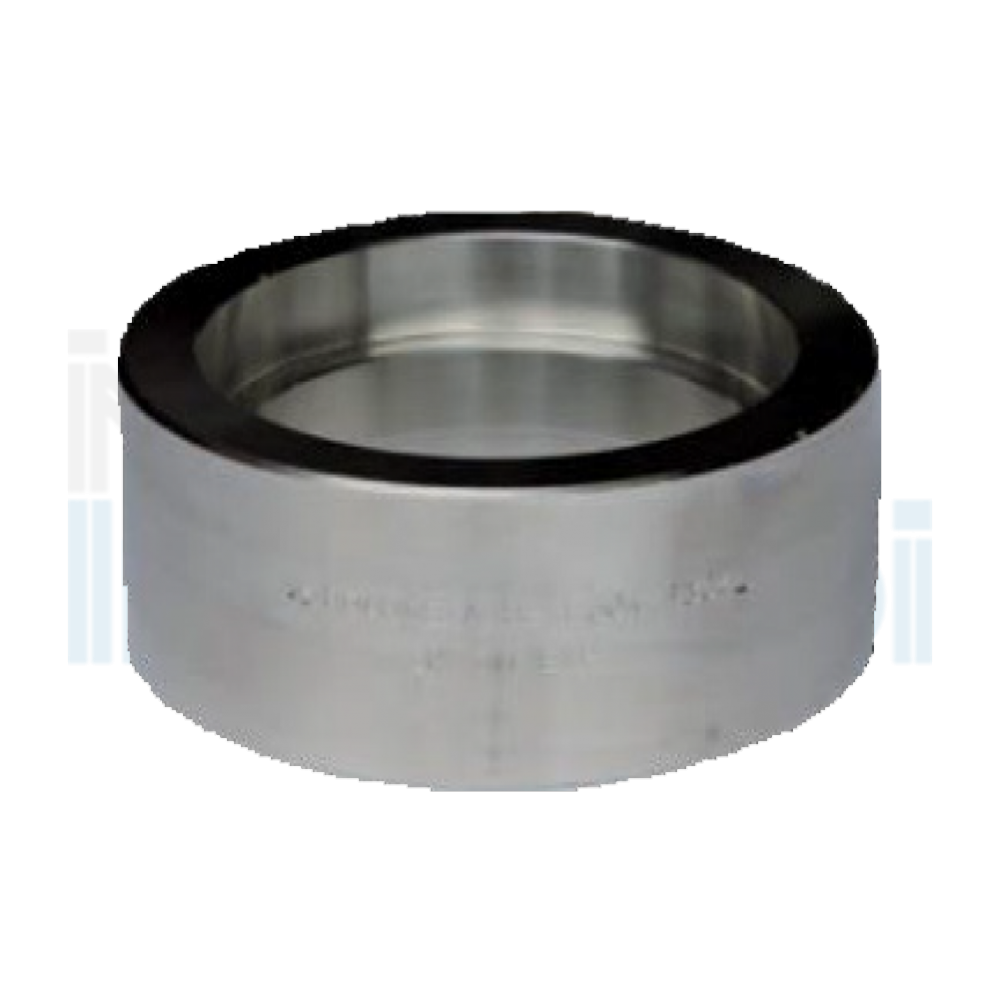

Manicotti / Couplings - E |
Mezzi manicotti / Half couplings - F |
|||||||||||
|
3000 |
6000 |
Tolleranze ± Tolerances ± |
3000 |
6000 |
Tolleranze ± Tolerances ± |
|||||||
|
mm |
inches |
mm |
inches |
mm |
inches |
mm |
inches |
mm |
inches |
mm |
inches |
|
|
1/4" |
6.5 |
0.25 |
6.5 |
0.25 |
1.5 |
0.06 |
16.0 |
0.62 |
16.0 |
0.62 |
1.0 |
0.03 |
|
3/8" |
6.5 |
0.25 |
6.5 |
0.25 |
3.0 |
0.12 |
17.5 |
0.69 |
17.5 |
0.69 |
1.5 |
0.06 |
|
1/2" |
9.5 |
0.38 |
9.5 |
0.38 |
3.5 |
0.12 |
22.5 |
0.88 |
22.5 |
0.88 |
1.5 |
0.06 |
|
3/4" |
9.5 |
0.38 |
9.5 |
0.38 |
3.5 |
0.12 |
23.5 |
0.94 |
23.5 |
0.94 |
1.5 |
0.06 |
|
1" |
13.0 |
0.50 |
13.0 |
0.50 |
4.0 |
0.16 |
29.0 |
1.12 |
29.0 |
1.12 |
2.0 |
0.08 |
|
1 1/4" |
13.0 |
0.50 |
13.0 |
0.50 |
4.0 |
0.16 |
30.0 |
1.19 |
30.0 |
1.19 |
2.0 |
0.08 |
|
1 1/2" |
13.0 |
0.50 |
13.0 |
0.50 |
4.0 |
0.16 |
32.0 |
1.25 |
32.0 |
1.25 |
2.0 |
0.08 |
|
2" |
19.0 |
0.75 |
19.0 |
0.75 |
4.0 |
0.16 |
41.0 |
1.62 |
41.0 |
1.62 |
2.0 |
0.08 |
|
2 1/2" |
19.0 |
0.75 |
19.0 |
0.75 |
5.0 |
0.20 |
42.5 |
1.69 |
42.5 |
1.69 |
2.5 |
0.10 |
|
3" |
19.0 |
0.75 |
19.0 |
0.75 |
5.0 |
0.20 |
44.5 |
1.75 |
44.5 |
1.75 |
2.5 |
0.10 |
|
4" |
19.0 |
0.75 |
19.0 |
0.75 |
5.0 |
0.20 |
47.5 |
1.88 |
47.5 |
1.88 |
2.5 |
0.10 |
ANSI B16.11 3000 - 6000 LBS
ANSI B16.11 3000 - 6000 LBS
ANSI B16.11 3000 - 6000 LBS
