040

STAINLESS STEEL REDUCE PORT BALL VALVE, THREE WAY TYPE L

Technical information
1. Stainless steel full port ball valve, 3 pieces
2. ”L” Ball configuration
3. Thread ends according EN 10226-1 (ISO 7.1 and DIN 2999)
4. Made of AISI 316 (CF8M)
5. Four Ball seats PTFE + 15% G.F.
6. Stem gasket PTFE
7. Viton o’ring stem
8. Anti-static device (Ball-Stem-Body)
9. Locking system
10. Direct mounting actuator ISO 5211
11. Blow-out proof stem.
12. Max.. Working pressure 63 bar

040

STAINLESS STEEL REDUCE PORT BALL VALVE, THREE WAY TYPE L

Technical information
1. Stainless steel full port ball valve, 3 pieces
2. ”L” Ball configuration
3. Thread ends according EN 10226-1 (ISO 7.1 and DIN 2999)
4. Made of AISI 316 (CF8M)
5. Four Ball seats PTFE + 15% G.F.
6. Stem gasket PTFE
7. Viton o’ring stem
8. Anti-static device (Ball-Stem-Body)
9. Locking system
10. Direct mounting actuator ISO 5211
11. Blow-out proof stem.
12. Max.. Working pressure 63 bar

N°

Nome

Name

Materiale

Material

Finitura Superficiale

Surface Treatment

1

Corpo / Body

Inox AISI 316 / SS 316

Decapata / Shoot blasting + Pickling

2

Coperchio / Cap

Inox AISI 316 / SS 316

Decapata / Shoot blasting + Pickling

3

Sfera / Ball

Inox AISI 316 / SS 316

---

4

Guarnizione sede sfera / Ball Seat

Teflòn + 15% FV / PTFE + 15% GF

---

5

Stelo / Stem

Inox AISI 316 / SS 316

---

6

Dispositivo anti statico / Anti-Static device

Inox AISI 316 / SS 316

---

7

Rondella / Trust Washer

PTFE

---

8

O’ring / O’ring

FKM (Viton)

---

9

Guarnizione stelo / Stem packing

PTFE

---

10

Guarnizione / Bushing

Inox + PTFE / S.S. + PTFE

---

11

Anello di tenuta / Stem ring

Inox AISI 316 / SS 316

---

12

Rondella molla / Spring Washer

Inox AISI 301 / SS 301

---

13

Dado / Nut

ASTM A194-8

---

14

Rondella di sicurezza / Stopper

Inox AISI 304 / SS 304

---

15

Rondella / Washer

Inox AISI 304 / SS 304

---

16

Dado leva / Handle Nut

Inox AISI 304 / SS 304

---

17

Rivestimento leva / Handle Sleeve

Vynil

---

18

Leva / Handle

Inox AISI 304 / SS 304

---

19

Dispositivo a chiave / Lock device

Inox AISI 304 / SS 304

---

20

Guarnizione coperchio / Gasket

Teflòn / PTFE

---

21

Perno / Stop Bolt

Inox AISI 304 / SS 304

---

22

Dado / Nut

ASTM A194-8

---
This device guarantees electric continuity between Ball - Stem - Body.
This is of special necessity in inflammable fluids.

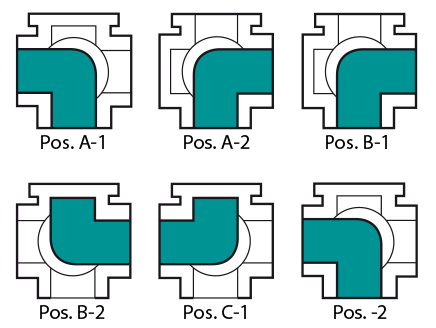

FLOW PATTERN (ART. 040)


Diametri

Size

Codice

Code

PN

Dimensioni / Dimensions (mm)

CxC

d

Peso

Weight

(Kg)

ISO 5211

L

H

H1

W

M

F

1/4"

IV0401/4

63

F03

F04

75

37

66

130

7

37

9x9

11

0.70

3/8"

IV0403/8

63

F03

F04

75

37

66

130

7

37

9x9

11

0.67

1/2"

IV0401/2

63

F03

F04

75

37

66

130

7

37

9x9

11

0.63

3/4"

IV0403/4

63

F04

F05

85

41

72

161

7

42

11x11

15

0.95

1"

IV0401

63

F04

F05

100

47

77

161

7

50

11x11

20

1.40

1 1/4"

IV04011/4

63

F05

F07

122

56

92

203

7

61

14x14

25

2.90

1 1/2"

IV04011/2

63

F05

F07

131

60

96

203

12

65

14x14

32

3.60

2"

IV0402

63

F05

F07

158

71

107

203

12

79

14x14

40

6.25

2 1/2"

IV04021/2

63

F07

F10

178

95

135

254

14

89

17x17

49

8.95


Misura

Size

Coppia

Breakaway torque (Nm)

1/4"

5 - 6

3/8"

5 - 6

1/2"

5 - 6

3/4"

8 - 9

1"

11 - 12

1 1/4"

14 -15

1 1/2"

20 - 21

2"

30 - 31

2 1/2"

***
Kv = Flow rate of water in cubic meter per hour that will generate a pressure drop of 1 bar across the valve.

Med./Size

1/4"

3/8"

1/2"

3/4"

1"

1 1/4"

1 1/2"

2"

2 1/2"

m3/h

11

11

13

15

31

39

62

103

205
