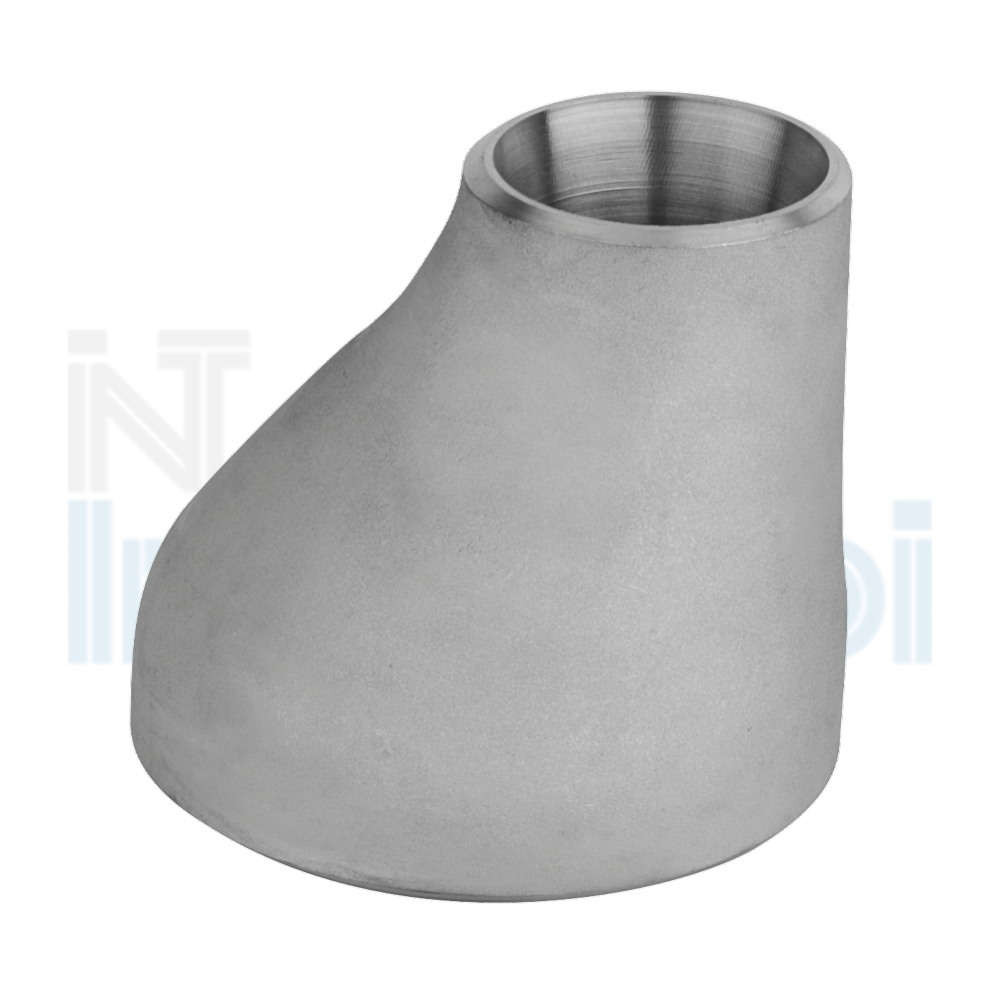

SEAMLESS ECCENTRIC REDUCERS (SCH160 ON REQUEST)

SEAMLESS ECCENTRIC REDUCERS
(SCH160 ON REQUEST)

Welded on request

rid-ecc

SEAMLESS ECCENTRIC REDUCERS (SCH160 ON REQUEST)

SEAMLESS ECCENTRIC REDUCERS
(SCH160 ON REQUEST)

Welded on request

D.E. POLLICI

D.E. INCHES

Ø est. x Ø est.

Outs. Ø x Outs. Ø

Sp. x Sp. mm

Thck. x Thck. mm

sch

H

Peso Kg/pz.

Weight Kg/pcs.

3/4" x 1/2"

26.67 x 21.33

2.11 x 2.11

10S

38

0.10

26.67 x 21.33

2.87 x 2.77

40S

0.14

26.67 x 21.33

3.91 x 3.73

80S

0.18

1" x 1/2"

33.40 x 21.33

2.77 x 2.11

10S

51

0.12

33.40 x 21.33

3.38 x 2.77

40S

0.15

33.40 x 21.33

4.55 x 3.73

80S

0.20

1" x 3/4"

33.40 x 26.67

2.77 x 2.11

10S

0.13

33.40 x 26.67

3.38 x 2.87

40S

0.16

33.40 x 26.67

4.55 x 3.91

80S

0.22

1 1/4" x 3/4"

42.16 x 26.67

2.77 x 2.11

10S

51

0.18

42.16 x 26.67

3.56 x 2.87

40S

0.22

42.16 x 26.67

4.85 x 3.91

80S

0.25

1 1/4" x 1"

42.16 x 33.40

2.77 x 2.77

10S

0.18

42.16 x 33.40

3.56 x 3.38

40S

0.22

42.16 x 33.40

4.85 x 4.55

80S

0.27

1 1/2" x 3/4"

48.26 x 26.67

2.77 x 2.11

10S

64

0.20

48.26 x 26.67

3.68 x 2.87

40S

0.26

48.26 x 26.67

5.08 x 3.91

80S

0.37

1 1/2" x 1"

48.26 x 33.40

2.77 x 2.77

10S

0.20

48.26 x 33.40

3.68 x 3.38

40S

0.26

48.26 x 33.40

5.08 x 4.55

80S

0.37

1 1/2" x 1.1/4"

48.26 x 42.16

2.77 x 2.77

10S

0.21

48.26 x 42.16

3.68 x 3.56

40S

0.28

48.26 x 42.16

5.08 x 4.85

80S

0.36

2" x 3/4"

60.33 x 26.67

2.77 x 2.11

10S

76

0.25

60.33 x 26.67

3.91 x 2.87

40S

0.37

60.33 x 26.67

5.54 x 3.91

80S

0.41

2" x 1"

60.33 x 33.40

2.77 x 2.77

10S

0.28

60.33 x 33.40

3.91 x 3.38

40S

0.40

60.33 x 33.40

5.54 x 4.55

80S

0.54

2" x 1 1/4"

60.33 x 42.16

2.77 x 2.77

10S

0.30

60.33 x 42.16

3.91 x 3.56

40S

0.44

60.33 x 42.16

5.54 x 4.85

80S

0.48

2" x 1 1/2"

60.33 x 48.26

2.77 x 2.77

10S

0.31

60.33 x 48.26

3.91 x 3.68

40S

0.45

60.33 x 48.26

5.54 x 5.08

80S

0.59

2 1/2" x 1 1/4"

73.03 x 42.16

3.05 x 2.77

10S

89

0.37

73.03 x 42.16

5.16 x 3.56

40S

0.63

73.03 x 42.16

7.01 x 4.85

80S

0.78

2 1/2" x 1 1/2"

73.03 x 48.30

3.05 x 2.77

10S

0.44

73.03 x 48.30

5.16 x 3.68

40S

0.77

73.03 x 48.30

7.01 x 5.08

80S

0.83

2 1/2" x 2"

73.03 x 60.30

3.05 x 2.77

10S

0.47

73.03 x 60.30

5.16 x 3.91

40S

0.80

73.03 x 60.30

7.01 x 5.54

80S

1.03

3" x 1"

88.90 x 33.40

3.05 x 2.77

10S

89

0.49

88.90 x 33.40

5.49 x 3.38

40S

0.85

88.90 x 33.40

7.62 x 4.55

80S

0.97

3" x 1 1/4"

88.90 x 42.16

3.05 x 2.77

10S

0.43

88.90 x 42.16

5.49 x 3.56

40S

0.75

88.90 x 42.16

7.62 x 4.85

80S

0.95

3" x 1 1/2"

88.90 x 48.26

3.05 x 2.77

10S

0.51

88.90 x 48.26

5.49 x 3.68

40S

0.94

88.90 x 48.26

7.62 x 5.08

80S

1.21
