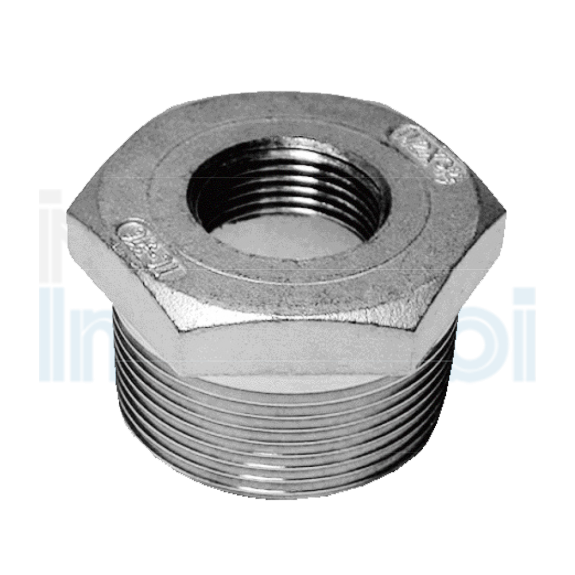

if241

BUSHING M/F

ISO 4144

Shape:
1/8" - 1/2"   Hexagon
3/4" - 2"  Octagon
2 1/2" - 4"  Decagon

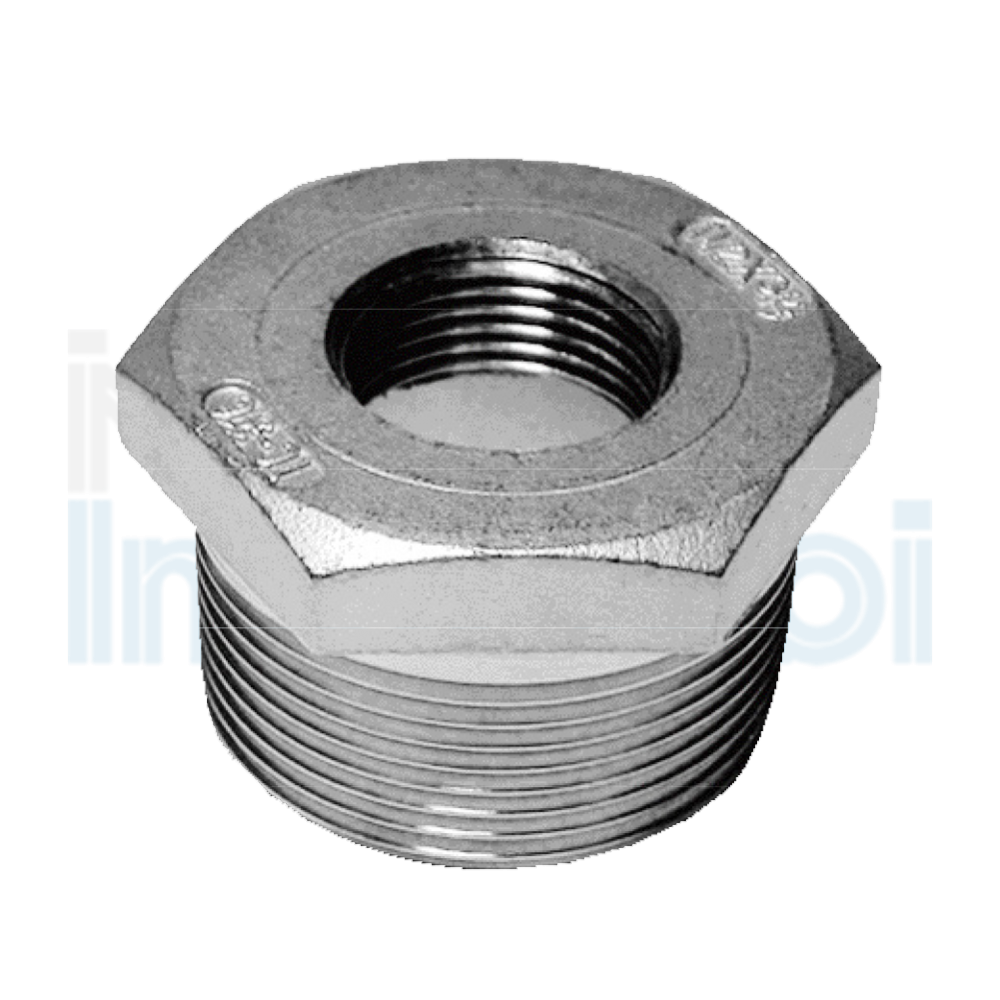

if241

BUSHING M/F

ISO 4144

Shape:
1/8" - 1/2"   Hexagon
3/4" - 2"  Octagon
2 1/2" - 4"  Decagon

Size 1

1/4"

3/8"

1/2"

3/4"

1"

1 1/4"

Size 2

1/8"

1/8"

1/4"

1/8"*

1/4"

3/8"

1/8"*

3/8"

1/2"

1/4"*

3/8"*

1/2"

3/4"

1/2"*

3/4"

1"

S

14.5

18.5

22.5

28

35

44

E

8

11.5

15

20.5

26

34.5

L

10.5

11

14.5

15.5

18

20.5

M

4

5

5

5.5

6

6.5


* Means the size is not standard

Size 1

1 1/2"

2"

2 1/2"

3"

4"

Size 2

1/2"*

3/4"*

1"

1 1/4"

1/2"*

3/4"*

1"*

1 1/4"

1 1/2"

1 1/2"

2"

1 1/2"*

2"

2 1/2"

2 1/2"

3"

S

49.5

61.5

77.5

90.5

116.5

E

40

51

65.5

77.5

101.5

L

20.5

25

27

30

36

M

6.5

7

7

7.5

8


* Means the size is not standard
